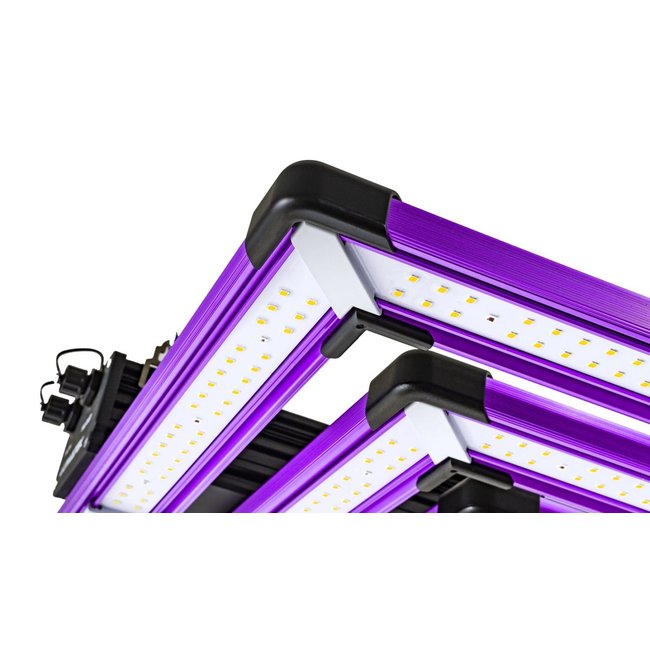

Lumatek ATS300W Pro LED is a light-weight fixture producing high levels of PPF of 816 µmol/s and a very high efficacy of up to 2.7 µmol/J, covering perfectly up to 1x1m grow areas.

With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. Lumatek ATS Pro full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) sufficient to provide sole-source or supplemental grow lighting for propagation, vegetative and flowering growth periods of indoor-grown crops.

The fixture efficacy will vary depending on the Input Voltage used.

The array of the new ATS Pro range create a uniform spread of light at short distance from the crop enabling good penetration of canopy and excessive heat. The innovative heat sink and use of passive natural convection has eliminated noise output and significantly increasing the life span of the fixture as it has no moving parts.

For different cultivars, propagation and vegetative growth periods this agile fixture may be dimmed without losing efficiency. The high efficiency and low powered LED configuration reduces the temperature of the LEDs increasing the output and improving light maintenance.

ATS300W PRO Range

The new Pro line of ATS is built using high quality Lumatek controllable drivers and latest generation higher efficiency top bin White, Red & Far Red Diodes.

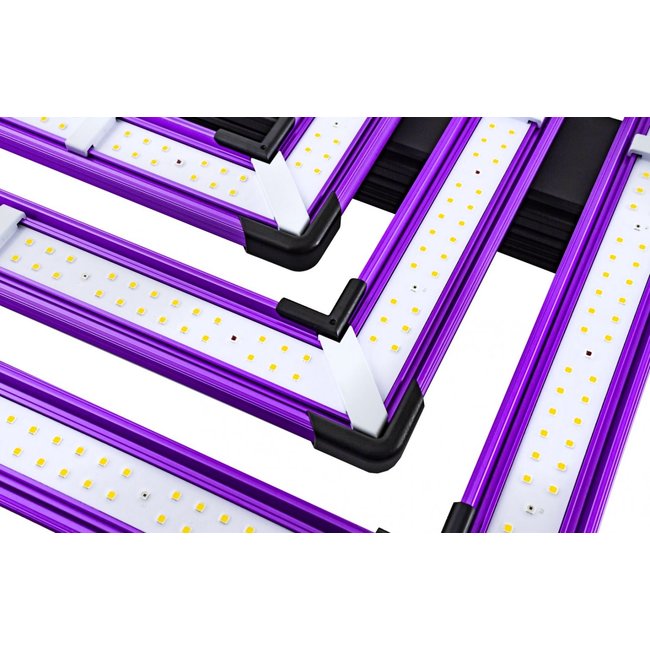

The upgraded diodes are now more evenly distributed across the whole length of the light bars resulting on a larger and more even light spread and footprint.

Other new features of this line include: New IP65 rating; Clear Glue protection cover technology on the LED bars, resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes and extra corrosion resistance; And new Control capability with the Lumatek Control Panel Plus 2.0.

KEY SPECIFICATIONS

EFFICACY: up to 2.7 µmol/J
PPF: 816 µmol/s
INPUT VOLTAGE: 220-240V, 50-60Hz
INPUT POWER: 310W (±2%)
FOOTPRINT: Up to 1x1m
WATERPROOF: IP65
LIFETIME: +60 000 hrs
LIGHT DISTRIBUTION: 120°
LIGHT SOURCE: Higher Spec White, Red & Far Red Diodes
DIMMABLE: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
EXTERNAL CONTROL: With Lumatek Digital Panel Plus 2.0
WEIGHT: 5.2 Kg
DIMENSIONS: 559.5x559.5x71.6mm
SPECTRUM: Full Spectrum +
BTU (WITH DRIVER ATTACHED): 1082 BTUs/h (Max)
BTU (WITH DRIVER REMOTE): 1006 BTUs/h (Max)
