Control up to 50 different sensors & 50 different control modules in combination with TrolMaster’s versatile Hydro-X Pro Control System (HCS-2) Utilising a large 10 inch LED touch screen with web based software. The Hydro-X Pro Control System is also backwards compatible with all current Hydro-X control / device modules. Providing greater flexibility and allowing for any plug-in module to be assigned to be whatever the user wants. The user can also set up each module to have multiple “conditions” that will activate the module, allowing for almost unlimited control options.

TrolMaster Hydro-X Pro Control System (HCS-2) Features;

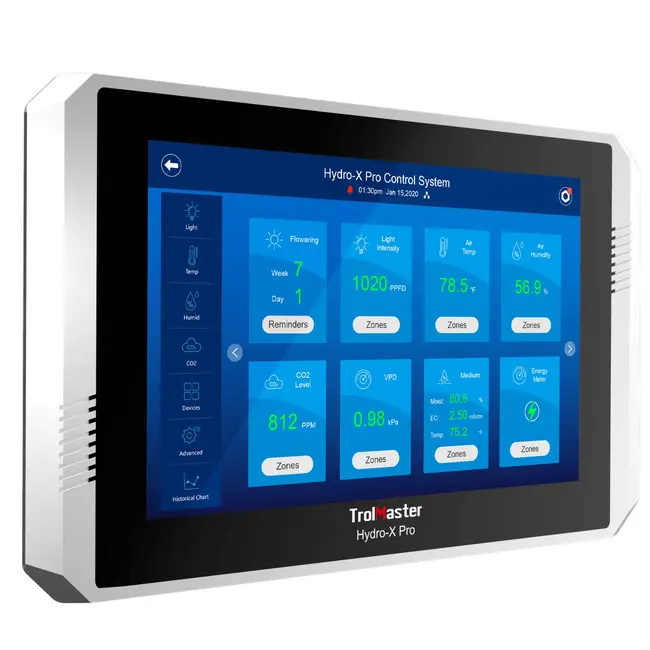

• 10.1″ Touchscreen
• Compatible with MBS-PRO 4-in-1 Sensor
• Calendar Control
• Fully Customisable
• Free Smart Phone App plus Web-base control system

The Hydro-x Pro is designed to be a single room controller for reliability and ease-of-use. It expands the capability of the original Hydro-X HCS-1) by allowing up to 50 sensors and up to 50 separate control modules to be connected to a single Hydro-X Pro. Multiple sub-zones can be created within the single grow space by linking a specific sensor, to a specific control function(s). The new 4-in-1 sensor comes with a LCD screen which provide the ease of onside monitoring.

Versatility:

The TrolMaster Hydro-X Pro Control System allows precise control of  temperature, humidity, CO2 and Light, each of these variables can be controlled independently by the user. This enables a customised ‘ramp-up/down’, used to closely simulate natural outdoor conditions, or simply allow complete customisation of the environment. This is displayed on an easy-to-read and construct “graph” allowing the user to have 100% control of their environment. Another powerful feature of the Hydro-X Pro is the built-in calendar and calendar presets that allows the user to schedule an entire crop’s “recipe” within the Hydro-X Pro. All settings can be specified by the user as they “build” their multi-week crop schedules. Reminders can also be programmed to ensure critical tasks are not forgotten.

The web-based software provides easy access and more advanced remote control. A good place to start is with these video tutorials provided by Trolmaster. Onboard data acquisition and the ability to store and share setting between multiple devices, means that user-defined programs & settings can be saved and loaded into multiple Hydro-X Pro units with ease. A personalised screensaver page can be uploaded through a USB port.

Hydro-X Pro Environmental Control System Specification:

Contents:

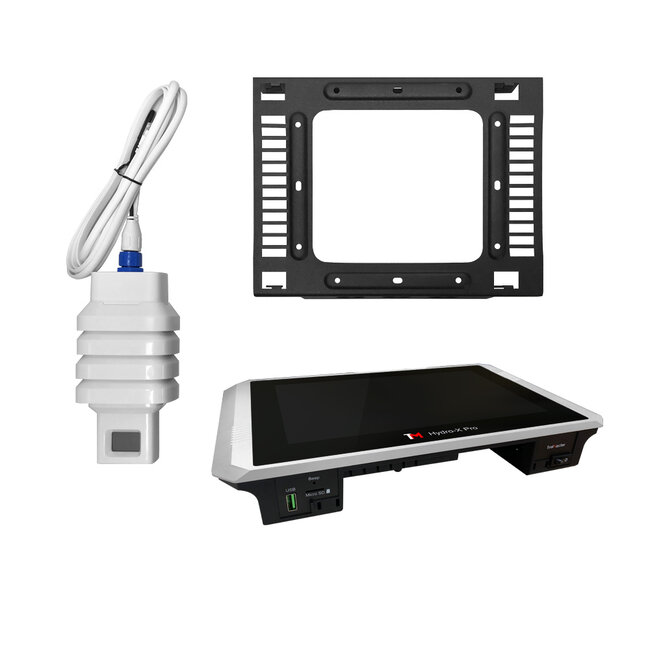

As well as the HCS-2 Controller the package contains a MBS-Pro Sensor, RJ12 Cable Set and Mounting Plate.
