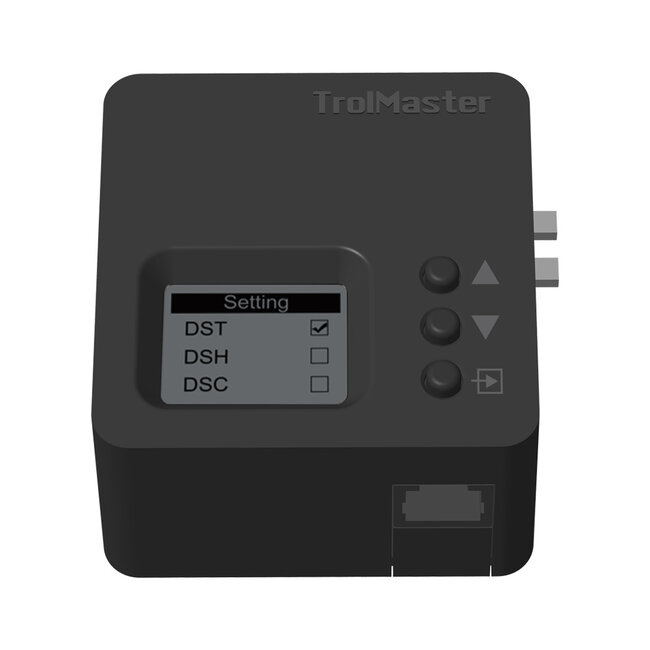

The TrolMaster DSV-1 is a versatile low-voltage output module compatible with Hydro-X and Aqua-X controllers. It can be configured for use with temperature, humidity, CO2, or timer devices. The DSV-1 offers flexible voltage options, providing output of either 12 or 24 VDC up to 0.5 amps or 12 or 24 VAC up to 4.8 VA. Once set up, it can activate connected low-voltage devices such as solenoids, valves, or audio-visual alarms. The module features a manual override function, allowing users to turn the device on or off by pressing and holding the top button.

Key Features:

• Flexible Output: Selectable 12/24 VDC up to 0.5 amps or 12/24 VAC up to 4.8 VA.
• Versatile Use: Configurable for temperature, humidity, CO2, or timer functions.
• Direct Device Connection: Connects low-voltage devices like solenoids, valves, and alarms.
• Manual Override: Easy manual control with a top button for ON/OFF operation.

Specifications:

• Output Voltage: 12/24 VDC or 12/24 VAC
• Current: Up to 0.5 amps (DC) or 4.8 VA (AC)
• Compatibility: Hydro-X and Aqua-X controllers
• Manual Control: ON/OFF override button

The DSV-1 provides essential control for low-voltage devices, offering flexibility and manual override capabilities for various applications within hydroponic and aquaculture systems.
